PEEK Plastic

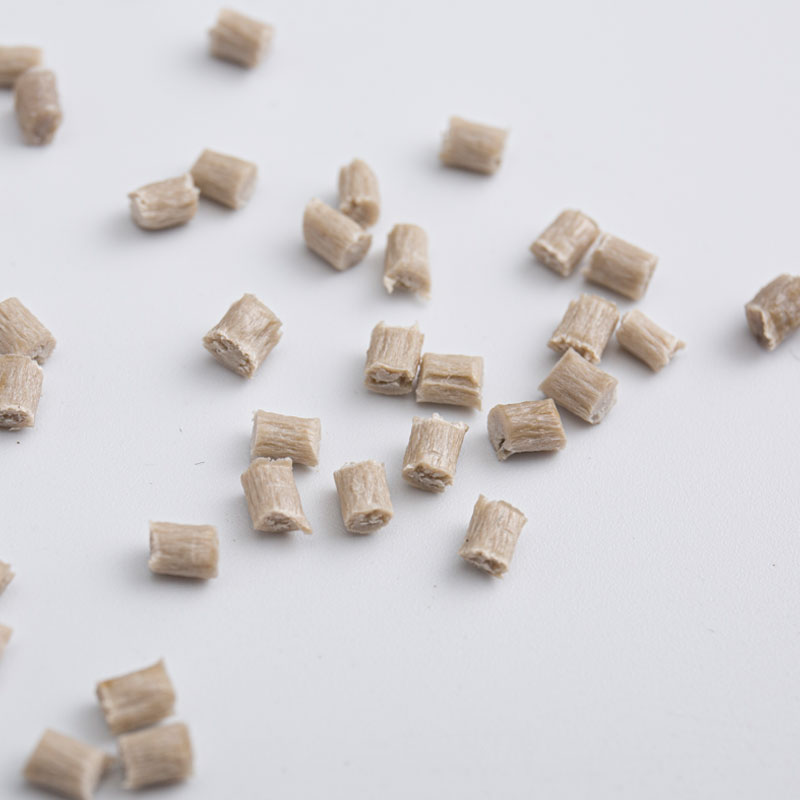

PLACITUM GF30 Plastic Granula

PEEK (Polyether Ether Ketone) est summus ordo summus perficientur specialitate plasticae machinalis. Iam pura PEEK proprietates praeclaras exhibet, sed effectus eius augeri potest additione fibrarum vitrearum (GF).

PEEK GF30 supremam rigorem, fortitudinem, et resistentiam praestantissimam praebet ad serpendum, cum magna fragilitate et summa caloris deflexione temperatura (>315°C). Firmissimas rationes sub calidis temperaturis conservat, bene gerunt resistentiam, et valde rigidum est cum valida deformatione resistentia. Eius stabilitas dimensiva optima est et paene intacta a temperie et humiditate.

PEEK GF30 (XXX% vitreum fibra firmata)
Core Characteres: summae rigiditatis, roboris, caloris deflexionis temperamentum praebet, cum optima resistentia serpendi et apicem dimensionis stabilitatis. Sed eius durities amplius decrescit, et in summa vestium processui experitur.

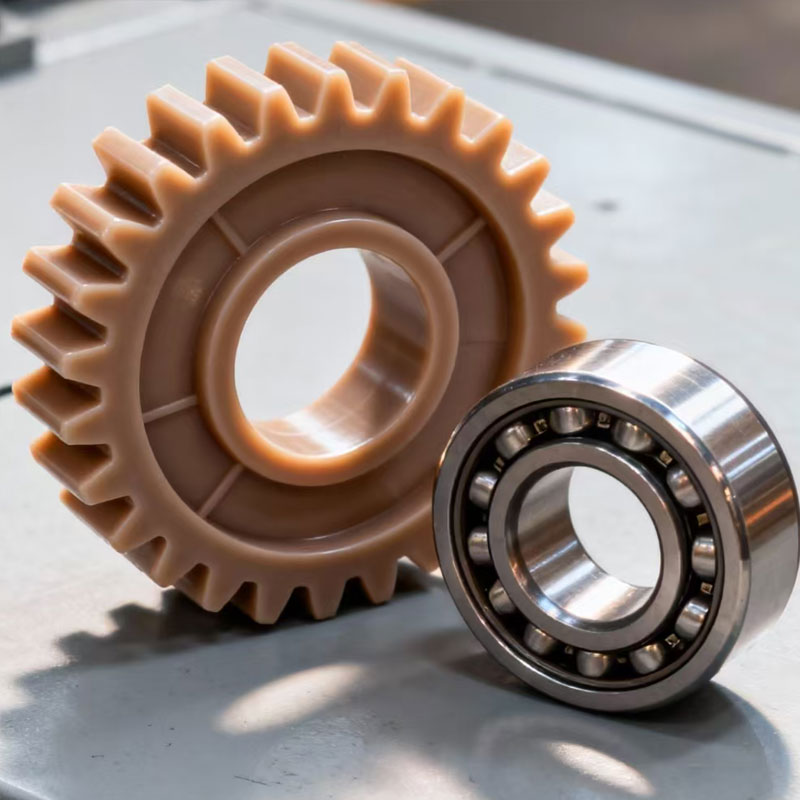

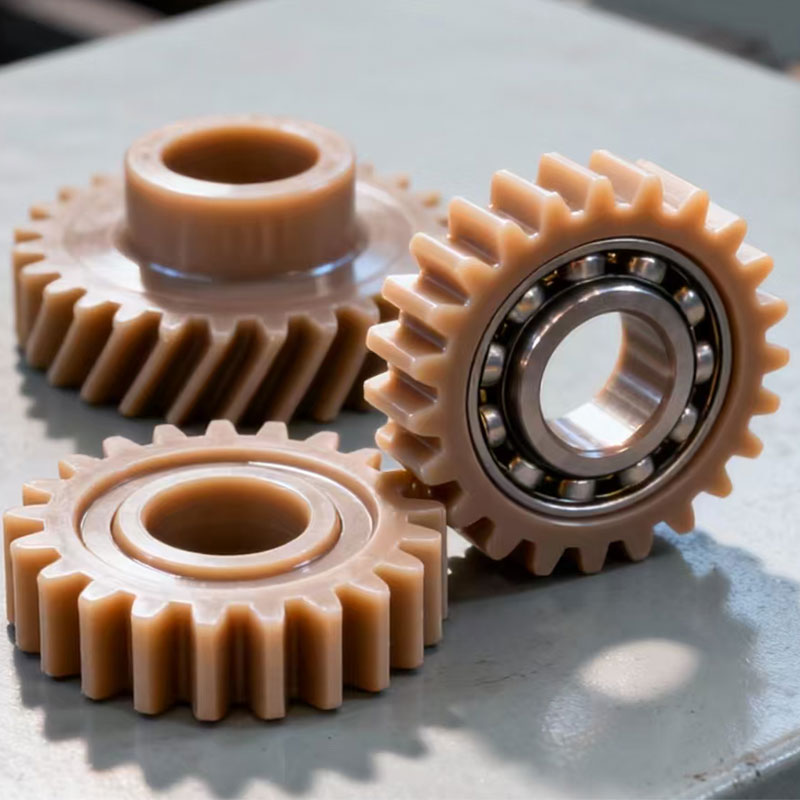

Typicam Applications:
• Partes structurales maximae Lond: Usus in applicationibus ubi onera maxime alta static vel dynamica involvuntur, sicut magnae gestus, connexiones graves, et partes internae valvulae altae pressuris.
• Extrema Dimensiva Stabilitas Requisita: Subtilitas instrumenti optici sustinet, laganum processus componentium in fabricandis semiconductoribus, ubi vel minima deformatione accepta est.
• Long-Term High-Temperature Pressure: Pipeline connexiones et exploratio instrumentorum partium in industriarum petrochemicarum et industriarum, quae ad diuturnum tempus altum temperaturae et altum pressurae ambitus exponuntur.

GF30 PEEK Elige:
Cum supremis gradibus mechanica et thermarum respicias, cum extrema stabilitate dimensiva requisita ac minus sentiendi difficultatem ad incursum duritiem et expediendas, PEEK GF30 optima est electio ad maximas applicationes exigendas.

Contactus Us
PREV：PPS GF30 PTFE flamma retardant gere repugnans plastic Pellets
DEINDE：High Temperature High Load Stability PEEK CF30
Parameter
Product Description
Resinae Lepidium sativum 30% fibra vitrea aucta, flamma retardant, cum eximia resistentia repunt stabilitate dimensiva optimal, fere non afficiuntur a temperie et humiditate.
Color Cinereo brunneis vel nigrum
Praecipua applicationes Summus onus partium structurarum portantes conventus, graves machinae connexiones, partes internae valvulae altae pressionis praecisio armorum opticorum munitionum, laganum tractantem componentium in instrumento fabricando semiconductoris instrumenti Pipe connexiones pro caliditate et applicationes altae pressurae, instrumentorum exploratio
Processus Ratio Iniectio CUMATIUM
Typical Properties Test Methodi Test Condition Precium Unitas
Corporalia Properties
Density DIN EN ISO 1183 23℃ 1.5 g/cm³
O Rate conflandum DIN EN ISO 1133 400℃/5kg 50 g/10min
DECREMENTUM GB 15585 0.3－0.5 %
Mechanica Properties
distrahentes Fortitudo DIN EN ISO 527 50mm/min 180 MPa
Modulus distrahens 12000 MPa
Elongation at Break 2.5 %
Flexurae Fortitudo DIN EN ISO 178 2mm/min 280 MPa
Flexurale Modulus 10000 MPa
Cantilever Beam
Fortitudo Unnotched Impact 		DIN EN ISO 180 4mm,22℃ 85 KJ/M2
Izod Notched Impact virtus DIN EN ISO 180 4mm,23℃ 11 KJ/M2
Scelerisque euismod
Calor Deformatio Temperature DIN EN ISO 75 1.8MPa Unannealed 315 ℃
Calor Deformatio Temperature DIN EN ISO 75 0.45MPa Unannealed 325 ℃
Liquefaciens temperatus DIN EN ISO 11357 340 ℃
linearibus expansion coefficientis DIN EN ISO 11359 Fluunt infra Tg* 1.80E 01 μm/m/
linearibus expansion coefficientis DIN EN ISO 11359 Fluat, supra Tg* 1.10E 02 μm/m/
Scelerisque euismod
Superficies Resistentia IEC 60093 23℃ 1.00E 15 Ω.CM
Volumen Resistentia IEC 60093 23℃ 1.00E 15 Ω.CM
Nulla vires IEC 60243 2.0mm 25 KV/mm
vi dieelectric IEC 60250 23℃ 1 KHz 3.2
dissipatio factor IEC 60250 23℃ 1 MHz 0.005
CTI' IEC 60112 150 V
Flamma retardant possessiones
Flamma retardant possessiones UL94 0.3mm V0
Flamma retardant possessiones UL94 0.5mm V0
Flamma retardant possessiones UL94 1mm V0
Flamma retardans possessiones UL94 1.5mm V0
(GWFI) Glouc filum flammability index IEC60695-2-12 0.75mm 960 ℃
(GWFI) Glouc filum flammability index IEC60695-2-12 1.5mm 960 ℃
(GWFI) Glouc filum flammability index IEC60695-2-12 3mm 960 ℃
(GWIT) Glouc filum flammability index IEC60695-2-13 0.75mm 850 ℃
(GWIT) Glouc filum flammability index IEC60695-2-13 1.5mm 850 ℃
(GWIT) Glouc filum flammability index IEC60695-2-13 3mm 960 ℃

Nota:

(1) Data valores typicos repraesentat et solum ad usum emptoris refertur. Promissionem non constituit minimarum vel maximarum qualitatis vel cuiuslibet consilii.
(2) euismod per varios colores variari potest.

Caute: Notitia et notitia in hoc documento fundantur in nostra cognitione et experientia. Si nova cognitio vel experientia in futurum emerserint, ius reservamus informationes et notitias mutandi sine praevia notitia. Cum usus condiciones et leges applicabiles loco et tempore variari possunt, clientes responsales sunt ad determinandum an fructus et informationes hic aptissima sint ad specifica applicationes. Clientes operas suas curare debent et methodos tractandi productos legibus applicabilibus aliisque praescriptionibus publicis parere. Lixin Nova Materia nullum debitum vel obligationem accipit circa informationes in hoc documento et nullas facit warantias. Per hoc expresse excluduntur omnes cautiones implicatae mercaturae vel idoneitatis ad aliquem finem.

Typical Iniectio Processus CUMATIUM
Plastic Siccatio
Siccatio tempus 2～4小时
Siccatio Temperature 130～150℃
Siccatio Equipment Hot-aer dryer
Siccatio Type Continua remittit (production process)
Iniectio CUMATIUM Process
COLLUM Sectio 370～390℃
Plastics Sectio 380～400℃
Deportatio Sectionis 360～380℃
Maximum in Iniectio Temperature 450℃
Iniectio Pressura 30～70MPa
Iniectio Volo 30～75mm/s
Plasticization Pressura Velocitas Pressura: 35-70 MPa Celeritas: 50-100 mm/s
Plasticization Back Pressura 20～60MPa
Forma Commendatur Temperature 170220℃

Disclaimer: Processus coronae supra iniectio variari possunt secundum factores, ut producti geometriae, forma designationis, iniectio machinae specificationes fingendae. Imprimis accommodationes faciendae sunt in condicionibus actualibus.
