Inicio / Products / Modified Plastic / Polyamide mutatio (PA) / High Dimensional Stability PA66 GF50 Plastic Pellets
  • High Dimensional Stability PA66 GF50 Plastic Pellets
  • High Dimensional Stability PA66 GF50 Plastic Pellets

Polyamide mutatio (PA)

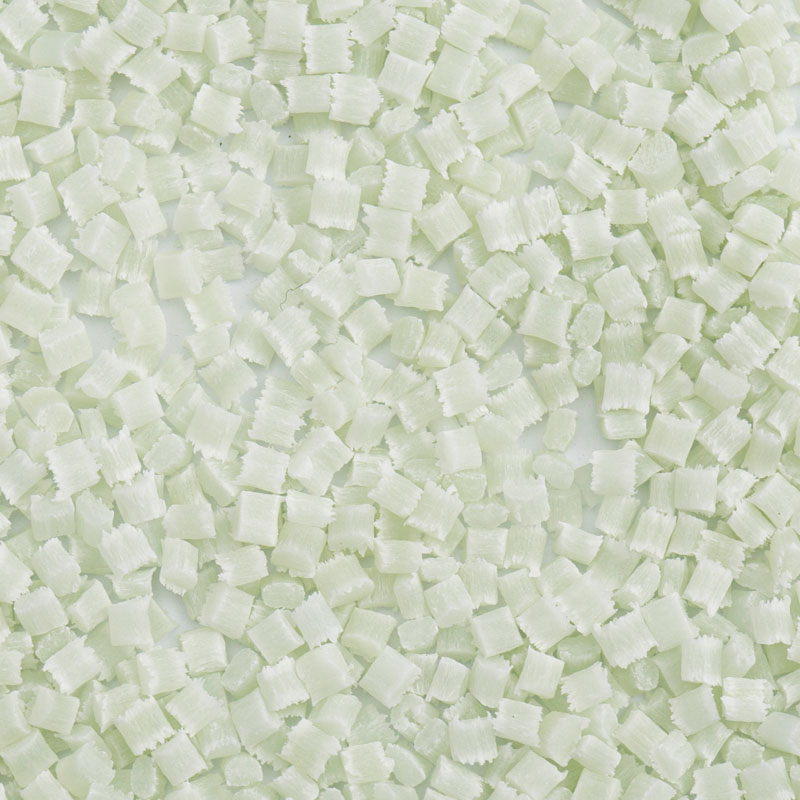

High Dimensional Stability PA66 GF50 Plastic Pellets

Lisu PA66 GF50 globulos plasticos inducunt, 50% fibrarum vitrearum subsidii ut nuclei notae eorum, eas praestantibus altiore observantia praestans. Simplicibus verbis, earum commoda sunt "rigidi, caloris resistens et olei repugnant", imprimis adhibita supplementa metallica ad componentes industriales fabricandos cum magnis requisitis ad robur, firmitatem dimensivam, et resistentiam chemica. Consistere cum Lanxess PA66 AKV50, Asahi Kasei PA66 13G50, et BASF A3EG10.
Property DescriptionCore AdvantagesUltra-altae roboris et rigiditatis: 50% fibrae vitreae subsidii, moduli distrahentes usque ad circiter 16,800 MPa, praestantibus viribus mechanicis. Excellent calor resistentia: calor deflexionis temperatus usque ad 250°C, capax diuturni continuus usus temperaturae usque ad 165°C. Resistentia chemica, praecipue resistens oleis, oleis — , hydraulicis et variis repraesentativis altum rigiditas. "Bona stabilitas dimensiva: conservat figuram et dimensionem stabilitatem sub magno onere et caliditate ambitus, cum resistentia ad creep. Typical Applicationem FieldsMechanical et automotives: communiter ad anniculos fabricare, portantes caveas, partes labentes, et inhabitationes et partes structurae cum magna rigiditate et subrepentes resistentia requisita. Electricae partes et electronicarum partium electronicarum: late utuntur ut coil electrici insulae et electronicis proprietatibus et dimensionibus electricis, et electronicis proprietatibus et dimensionibus insulis e coil stabilitas. Specifica campi applicationes: speciales gradus contactus cibi (FC) gradus, in aqua bibendo et in missione missionum contactus cibi adhiberi possunt; etiam usus est in fundis industrialibus ad fabricandas sentinas corporum, valvularum, et similium partium.
Super, haec materia a Lisu producta est optio summus perficientur in metallis reponendis aptissima praesertim ad pondus ac maius consilium libertatem in componentibus fabricandis. Si opus est elementis plasticis quae operantur in summus temperatus, summus onus, vel oleum in ambitibus mediis, haec optio valde operae pretium est considerare..

Contactus Us
PREV：Nullus prior articulum
DEINDE：PA66 Plastic Granula |
Parameter
Productum Descriptio
Resinae Lepidium sativum L% fibra vitrea aucta, hydrolysi resistens, oleum repugnans, summus impetus, summus modulus, calor senescentis resistens, optimae superficiei finis
Color Nigrum vel vexillum color
Praecipua applicationes Electrical components, electronica, automotiva, etc.
Processus Ratio Iniectio CUMATIUM
Typicam Properties Test Modo Temptare Conditionem Precium Unitas
Physica Proprietates
Density DIN EN ISO 1183 23℃ 1.59 g/cm³
O Rate conflandum DIN EN ISO 1133 275℃/5kg 35 g/10min
DECREMENTUM GB15585 0.15—0.3 %
Mechanica Properties
distrahentes Fortitudo DIN ENISO 527 50mm/min 230 MPa
Elongation at Break >3 %
Flexurae Fortitudo DIN EN ISO 178 2mm/min 340 MPa
Flexurale Modulus 16500 MPa
Modulus distrahens DIN EN ISO 527 5mm/min 14500 MPa
Izod Notched Impact virtus DIN EN ISO 180 4mm,23℃ 22 KJ/M²
Izod Notched Impact virtus DIN EN ISO 180 4mm, -30℃ 10 KJ/M²
Cantileverus trabes non sine viribus impulsum est DIN EN ISO 180 4mm,23℃ 95 KJ/M²
Cantileverus trabes non sine viribus impulsum est DIN EN ISO 180 4mm, 30℃ 40 KJ/M²
Scelerisque euismod
Calor Deformatio Temperature DIN EN ISO 75 1.8MPa 240 ℃
Calor Deformatio Temperature DIN EN ISO 75 0.45MPa 250 ℃
Vika emollit DIN EN ISO 306 120℃/hr 50N 255 ℃
Flamma retardatio
Flammability UL94 0.38mm HB Classisisisisis
Flammability UL94 0.5mm HB Classisisisisis
Flammability UL94 0.75mm HB Classisisisisis
Flammability UL94 1.5mm HB Classisisisisis
Flammability UL94 3mm HB Classisisisisis
GWFI IEC 60695-2-12 0.4mm / ℃
GWFI IEC60695-2-12 0.75mm / ℃
GWFI IEC 60695-2-12 1.5mm 650 ℃
GWFI IEC 60695-2-12 3mm 650 ℃
GWIT IEC 60695-2-13 0.75mm / ℃
GWIT IEC60695-2-13 1.5mm 550 ℃
GWIT IEC 60695-2-13 3mm 550 ℃
Alia perficientur
Pressura pila IEC 60695-10-2 205 ℃

"Nota: (1) Notitia provisa sunt valores typici et solum ad clientium relatio destinantur, minimam vel maximam qualitatis vel quaelibet alia warantia cautionem non constituunt.   (2) Euismod secundum colorem variari potest.

"Cautio: Notitia et notitia in hoc documento fundantur in nostra cognitione et experientia. Si nova cognitio vel experientia in futurum praesto fiant, ius reservamus informationes et notitias in hoc documento mutandi sine praevia notatione. Cum condiciones usus et applicabiles leges loco et tempore variari possunt, emptoris est responsabilitas determinare utrum productorum et uberum notitiarum in hoc documento tractando aptae sint ad usum emptoris et normas agendi, ut earum leges et rationes ad effectum deducantur. Materiae compositae nullum debitum vel obligationem sumunt circa informationes in hoc documento et nullas facit warantias.

Typicam Iniectio Processuum Classicam
Plastica Siccatio
Siccatio tempus 2～4h
Siccatio Temperature 100～130℃
Siccatio Equipment Hot-aer dryer
Siccatio Type Continua remittit (production process)
Iniectio Processum
COLLUM Sectio 260～280℃
Plastics Sectio 280～ 300℃
Deportatio Sectionis 260～280℃
Maximum Iniectio Temperature 330℃
Iniectio Pressura 40～120MPa
Iniectio Volo 30～75mm/s
Plasticization Pressura Velocitas Pressura: 65-100 MPa; Celeritas: 60-85 mm/s
Plasticization Back Pressura 3～40MPa
Forma Commendatur Temperature 100～150℃

Nota: iniectio fingendi processum supra descriptum variari potest secundum factores sicut figura, forma, ratio, iniectio machinae specificationes; certis referendorum condicionibus fundatur.
