  • Calor repugnans PPA GF30 Plastic

PPA Plastic Pellets mutatio

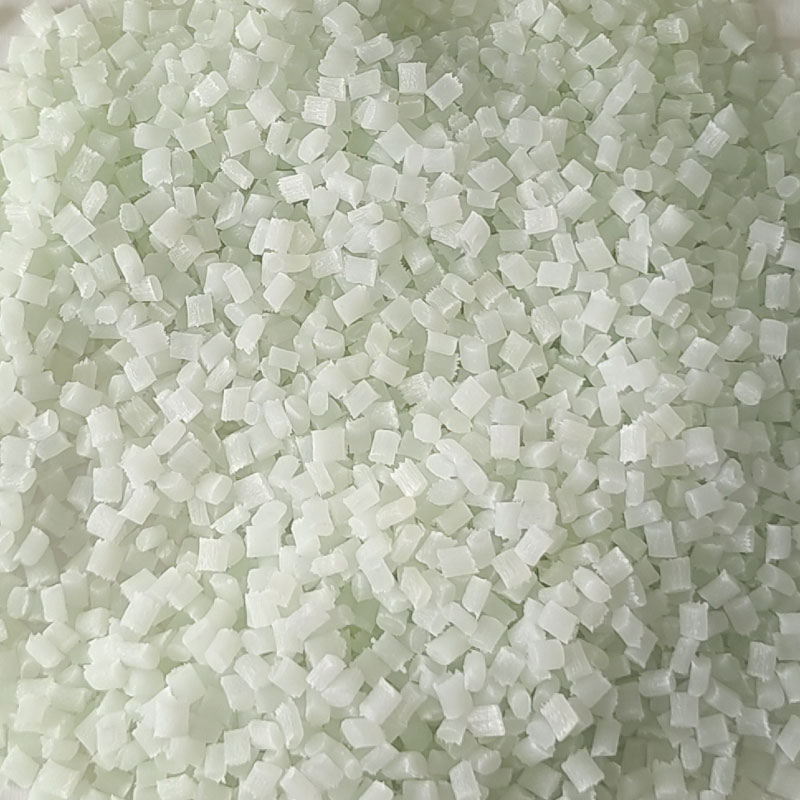

Calor repugnans PPA GF30 Plastic

PPA
Full name: Polyphthalamide.
Natura: nylon semi-aromaticum summus temperatus. Comparatus cum nylonibus conventionalibus (PA6, PA66), eius catenis hypotheticis structurae anuli rigidae benzenae incorporantur.

Core Features:
Optimum summus temperatus resistentia: Diu terminus usus temperatus typice excedit 180°C; calor deflexio temperatus (HDT) multo altior quam ordinaria nylon.
Praestantissima vi mechanica et rigore.
Bonum chemicum resistentia: Maxime repugnant humoribus autocinetis ut cibus, oleum machinamentum et coolant.
Humilis effusio humoris: meliorem praebet stabilitatem dimensivam quam nylon conventionalis et effectus minus humiditate afficitur.

Vitia:
PPA resina pura est relative fragilis, cum modica ictum viribus et processui fluxabilium tenuiorum.

Praecipua Applications:
Automotive components (housings sensorem, juncturas greges)
Electronic connexiones requirunt SMT (Surface-Montis Technologiae)
Pars caloris repugnans in adjumenta domus (ferrum, partium internarum machinarum capulus)

Fibra vitream roboratam PPA: GF30 PPA
Plena nominis / compositio: PPA cum 30% Fibra vitrea.
Natura: Uniformiter mixta cum 30% brevi fibris vitreis in PPA matricis; communius adhibita subsidia sumptus-efficax methodus.

Differentiae a pura PPA:
Emendationes significantes: robur tensile, robur flexurale, modulus flexus (rigiditas), lassitudo resistentia, resistentia serpunt.
Consectetur: Dimensionalis stabilitas, caloris deflexio tortor.
Reductiones possibilis: Impact spissitudo (leviter magis fragilis), anisotropia (males diversae DECREMENTUM per fluxum et directiones transversales).

Praecipua Applications:
Automotiva: Iugulum corpora, gasi recirculationem (EGR) exhauriunt, organorum attractio turbocharger, uncis structurarum.
Electronica et electrica: Complexum murus tenuis, connexiones, coil bobbins, permutationes minimae.
Industriae: Pump insterni, anni, caveas portantes, et alia membra alta vires et calor resistentia requirunt.

Contactus Us
PREV：PPA PTFE Plastic
DEINDE：Nullus proximus articulum
Parameter
Resinae Lepidium sativum PPA GF30 15% PTFE roboratus, resistens, caloris gradus confirmati Interne lubricati
Color Naturalis vel Typical Colores
Praecipua applicationes Electricae partes, partes motrices, partes automotivae
Processus Ratio Iniectio CUMATIUM
Typical Properties Test Methodi Test Condition Precium Unitas
Corporalia Properties
Density DIN EN ISO 1183 23 °C 1.55 g/cm* 3
Absorptio aquae ASTM D570 50RH 24hr 0.3 %
DECREMENTUM GB 15585 0. 2-0.4 %
Mechanica Properties
distrahentes Fortitudo DIN EN ISO 527 50mm/min 190 MPa
Elongation at Break 2.5 %
Flexurae Fortitudo DIN EN ISO 178 2mm/min 290 MPa
Flexurale Modulus 11000 MPa
Modulus distrahens DIN EN ISO 527 5mm/min 9800 MPa
Izod Notched Impact virtus DIN EN ISO 180 4mm,23 12. 5 KJ/M 2
Cantileverus trabes non sine viribus impulsum est DIN EN ISO 180 4mm,23 100 KJ/M 2
Frictio Coefficientis ASTM D3702 Dynamic 0.46
Frictio Coefficientis ASTM D3702 Static 0.49
Scelerisque euismod
Calor Deformatio Temperature DIN EN ISO 75 1.8MPa 270 ℃
Calor Deformatio Temperature DIN EN ISO 75 0.45MPa 295 ℃
Vika emollit DIN EN ISO 306 120℃/hr 50N 310 ℃
alii
Flamma retardans possessiones UL94 0.75-3mm HB
Ad meridiem filum flammability index IEC60695-2-12 0.75mm 650 ℃
Ad meridiem filum flammability index IEC60695-2-12 1.5mm 650 ℃
Ad meridiem filum flammability index IEC60695-2-12 3mm 750 ℃
Ad meridiem filum flammability index IEC60695-2-13 0.75mm 650 ℃
Ad meridiem filum flammability index IEC60695-2-13 1.5mm 650 ℃
Ad meridiem filum flammability index IEC60695-2-13 3mm 750 ℃

Nota:

(1) Notitia valores typicos sunt, tantum ut relatio usus clientium, non ut cautio minimi vel maximi pretii qualitatis indicatorum et cuiuslibet alterius usus.

(2) euismod variari potest cum diversis coloribus.

Typical Iniectio Processus CUMATIUM
Plastic Siccatio
Siccatio tempus III ~ IV horae
Siccatio Temperature 120~ 140℃
Siccatio Equipment Hot Air Dryer
Siccatio Type Continua remittit (production process)
Iniectio CUMATIUM Process
COLLUM Sectio 320~340℃
Plastics Sectio 310~330℃
Deportatio Sectionis 290~310℃
Maximum Iniectio Temperature 360℃
Iniectio Pressura 60~ 120MPa
Iniectio Volo 30~75mm/s
Plasticization PressureVelocity Pressura 65~100MPa, Velocitas 60-85mm/s
Plasticization Back Pressura 10~40MPa
Forma Commendatur Temperature 150~170℃

Nota:
Iniectio praedicta processus coronae fundari debet ex figura producti, consili, et iniectio speciei machinae fingentis, et aliae conditiones diversae, parametri specificae secundum condicionem repositae aptari debent..
